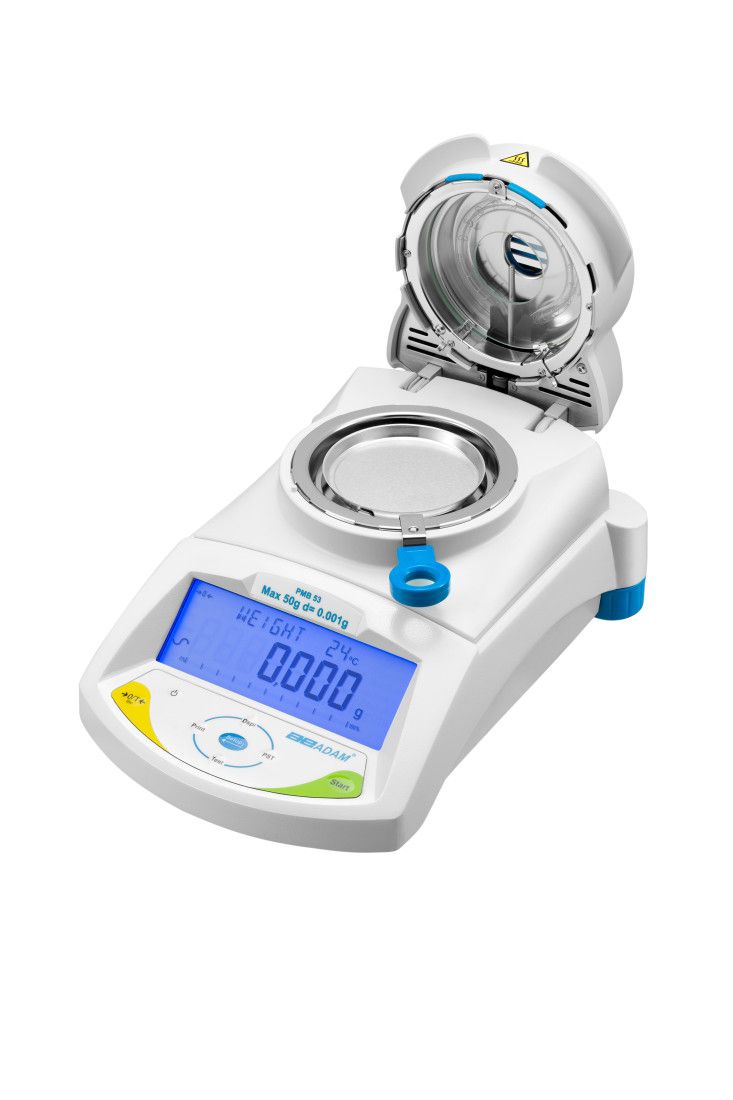

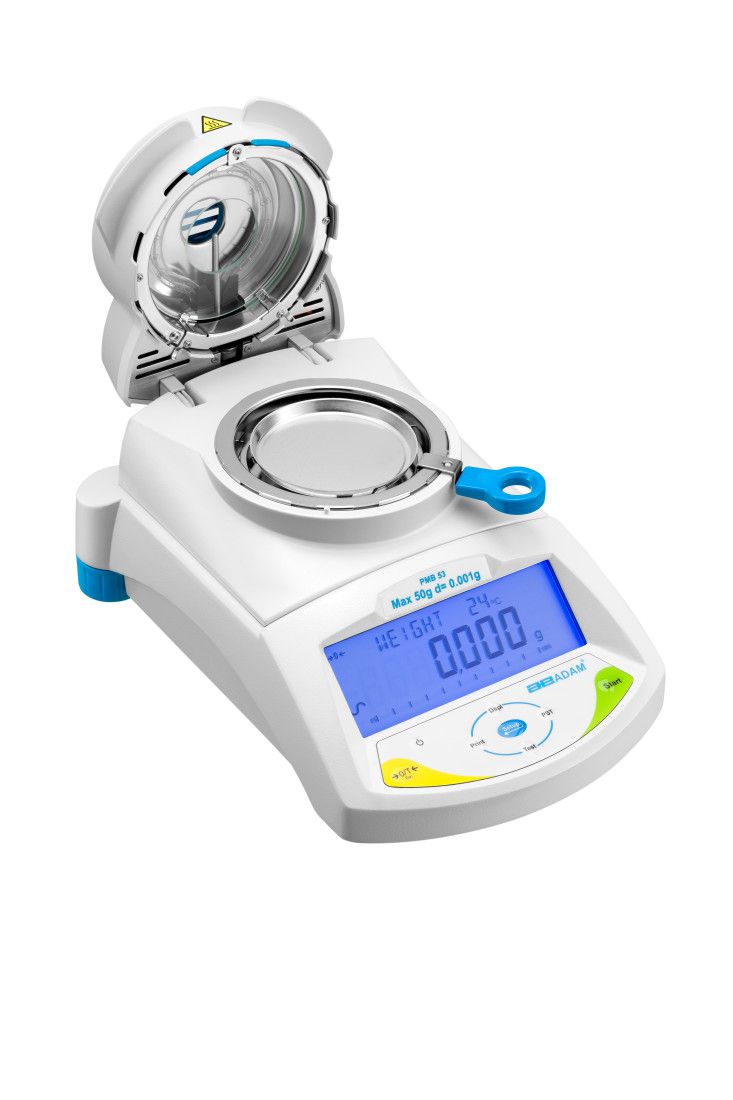

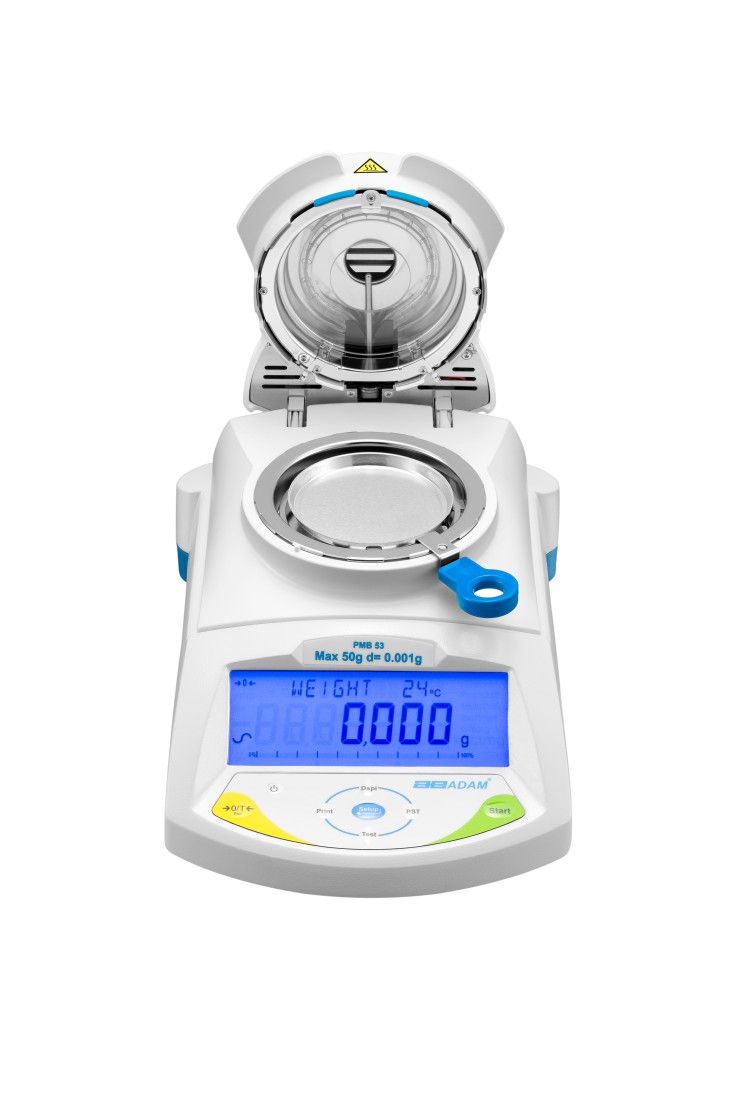

PMB Moisture Analyser-PMB 53

Capacity
50g
Readability
0.001g / 0.01%
Pan Size
100mm ø
View alternative models
With simple operation and rapid response time, PMB offers top value in moisture analysis. USB and RS-232 interfaces facilitate connectivity, while another USB port allows storage of test programs and data on flash drives.
Warranty 5 years

Applications

  • WeighingWeighing
  • Moisture determinationMoisture determination

Features

  • Backlit DisplayBacklit Display
  • TareTare
  • RS-232RS-232
  • USBUSB
  • External CalibrationExternal Calibration
  • DateDate
  • TimeTime
  • GLPGLP
  • Security LockSecurity Lock
  • Multiple Weighing unitsMultiple Weighing units
Toggle icon descriptions
With simple operation and rapid response time, PMB moisture analysers offer the top value in their class. The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field. A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customise test methods and temperatures for different materials.

Features and Benefits

  • Vivid, backlit LCD easily visible in any lighting conditions
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Capacity tracker built into display for easily monitoring possible overloads
  • Scratch-resistant aluminum housing protects internal components
  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Pan lifter allows easy placement and removal of samples
  • RS-232 interface provides speedy connection to computers and printers
  • USB host for memory card and USB I/O interface
  • USB interface included for data communication
  • Temperature range 50°C to 160°C in one-degree increments
  • Mains power cord
  • Three settings for heating sample include ramp-up, stepped temperatures and single temperature
  • Four preset drying modes allow test routines for several products
  • Audible overload alarm warns when capacity is exceeded
  • Testing can be set to start automatically when lid closes
  • Calibration for temperature and weight
  • Multilingual display allows use in many different countries
  • Quick and easy configuration using the keypad
  • Zero-tracking feature ensures display returns to zero reading
  • Internal memory stores 49 different recipes and up to 99 test results, while additional test results and settings can be stored on a flash drive
  • Security slot for optional lock and cable to help prevent theft
  • A 5-year warranty means quality assured for years of use.

Technical specification

Model

PMB 53

UPC: 819309014737

Metrology

  • Capacity
    • 50g
  • Readability
    • 0.001g / 0.01%
  • Repeatability
    • 0.001g
  • Linearity
    • 0.002g

General Specifications

  • Pan size
    • 100mm ø
  • Weighing Units
    • %M, %S, ATRO %M, ATRO %S, g
  • Interface
    • RS-232/USB
  • Calibration
    • External calibration
  • Display
    • Backlit LCD with 24mm high digits

Power

  • Power Supply
    • Power cord

Operating Conditions

  • Operating Temperature
    • 0° to 40°C / 32° to 104°F

Product Information

  • Construction
    • Die-cast aluminum
  • Net Weight
    • 6kg

Dimensions

  • Overall dims
    • 250x360x185mm
